SMC电磁阀SJ2000/30004通电磁阀／盒型集装式：
| 系列 | 流量特性 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
流量特性 4/2→3/5（A/B→E） b |
流量特性 4/2→3/5（A/B→E） Cv |
气缸驱动 尺寸 |
消耗功率（W） |
|---|---|---|---|---|---|
| SJ2000 | 0.36 | 0.13 | 0.08 | φ20 |
0.55（标准） 0.23（带节电回路） |
| SJ3000 | 0.56 | 0.11 | 0.12 | φ25 |
0.4（标准） 0.15（带节电回路） |
0.15 W (SJ3000 with power saving circuit)
0.23 W (SJ2000 with power saving circuit)
(Based on SMC life test conditions)
Plug-in connector type (Card edge type)
Series SJ2000 and SJ3000 can be mounted together.
・Can easily increase or decrease stations and replace valves.
・34 pins connector allows up to 16 stations with double solenoids, 32 stations with single solenoids.
Plug-in cable type
Non plug-in individual wiring compliant, too
SUP/EXH block assembly with regulator and pressure switch
This pressure regulator is intended to adjust the SUP pressure of the manifold.
Additionally, pressure switch and pressure gauge can be mounted.
Regulator block
This is a regulator block with the same width (10 mm) as the SJ3000.
Pressure supplied from the D side is used to reduce pressure in the manifold.
The U side valves are all depressurized from the regulator block.
Valve with speed controller
As a speed controller is built-into this valve, the cylinder speed can be adjusted on the valve side.
Two types, meter-in and meter-out, are set.

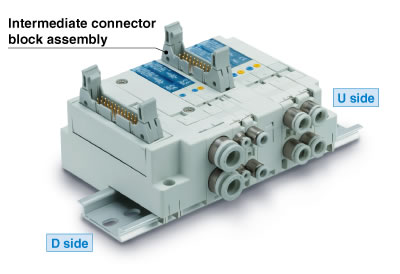

Intermediate connector block assembly
This connector block can be used by inserting it into the middle of the manifold.
This can be used, for example, when you wish to separate electrical control of valves in the same manifold, or when the number of control points is insufficient.
The assembly is also compatible with PC wiring with the power supply terminal.
(Please contact SMC.)
Two spool valves are built-in.
Vacuum suction and release can be controlled with a single valve.
