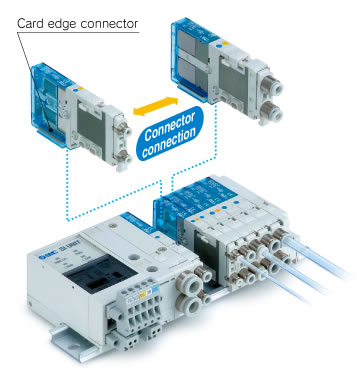

Plug-in connector type (Card edge type)

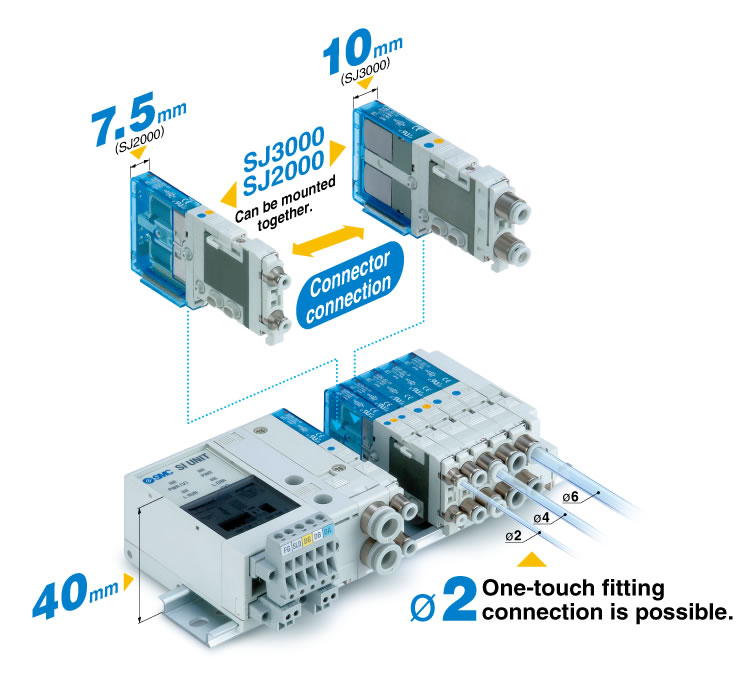

Series SJ2000 and SJ3000 can be mounted together.
・Can easily increase or decrease stations and replace valves.
・34 pins connector allows up to 16 stations with double solenoids, 32 stations with single solenoids.

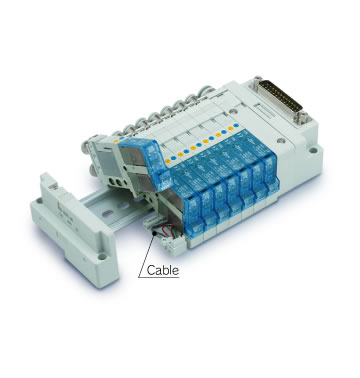

Plug-in cable type

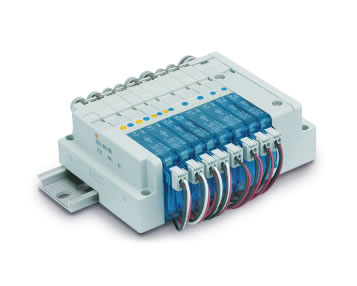

Non plug-in individual wiring compliant, too

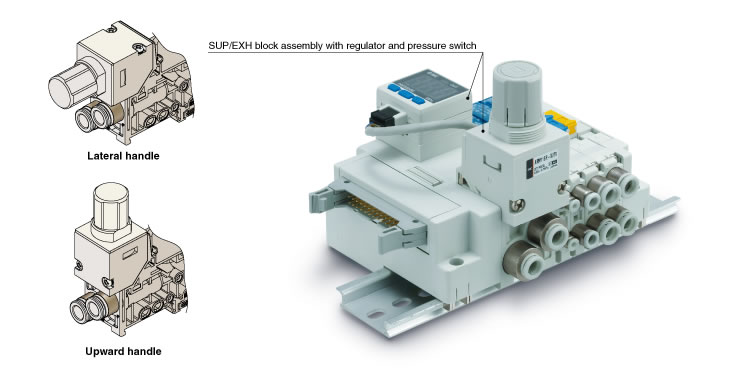

SUP/EXH block assembly with regulator and pressure switch

This pressure regulator is intended to adjust the SUP pressure of the manifold.
Additionally, pressure switch and pressure gauge can be mounted.

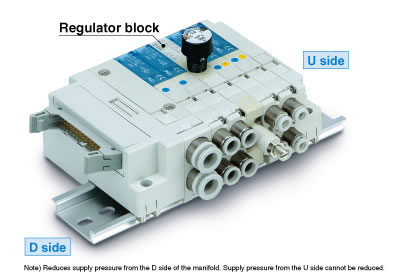

Regulator block

This is a regulator block with the same width (10 mm) as the SJ3000.
Pressure supplied from the D side is used to reduce pressure in the manifold.
The U side valves are all depressurized from the regulator block.

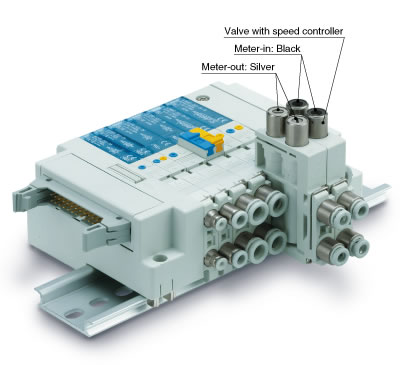

Valve with speed controller

As a speed controller is built-into this valve, the cylinder speed can be adjusted on the valve side.
Two types, meter-in and meter-out, are set.

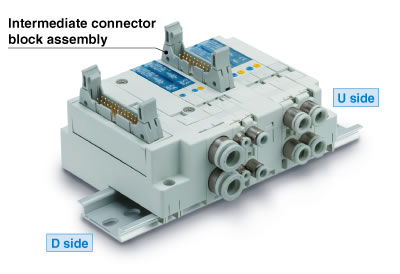

Intermediate connector block assembly

This connector block can be used by inserting it into the middle of the manifold.
This can be used, for example, when you wish to separate electrical control of valves in the same manifold, or when the number of control points is insufficient.
The assembly is also compatible with PC wiring with the power supply terminal.
(Please contact SMC.)

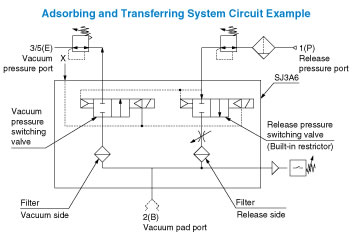

Two spool valves are built-in.
Vacuum suction and release can be controlled with a single valve.
