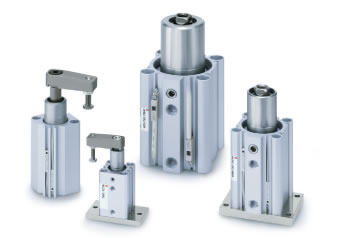

SMC气缸MK回转夹紧缸：
| 型号 | 系列 | 动作方式 | 缸筒内径（mm） |
|---|---|---|---|
| 标准型 | MK | 双作用 | 12，16，20，25，32，40，50，63 |
Allowable moment of inertia is the same as the heavy-duty MK2 series.

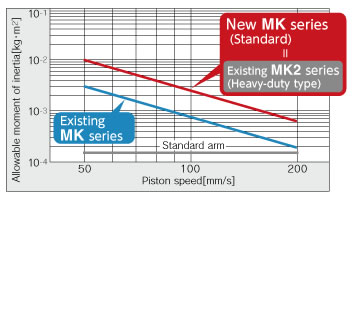

Allowable Moment of Inertia (32 mm, 40 mm)

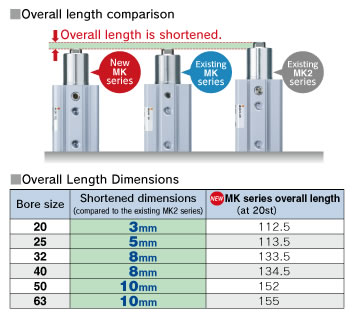

3 to 10 mm shorter than the MK2 series,
making the product more compact.
Overall length is the same as the existing products!

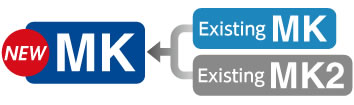

Mounting dimensions are interchangeable with the MK series.

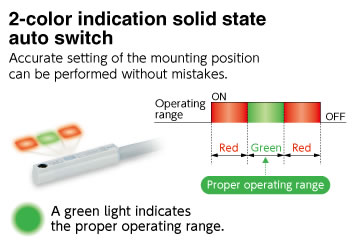

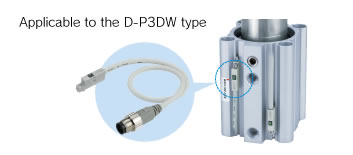

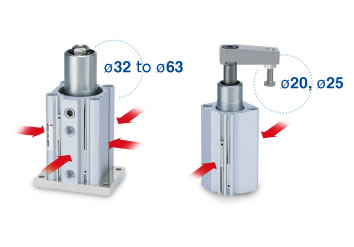

・Auto switches can be mounted on any of the 4 surfaces to suit the installation conditions
(2 surfaces for 20 mm、 and 25 mm).
・No projection of auto switch

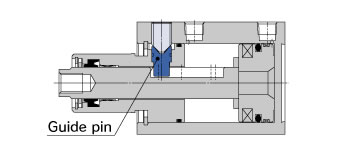

Seal kit and guide pin are replaceable.

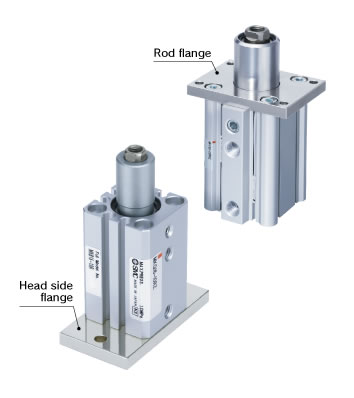

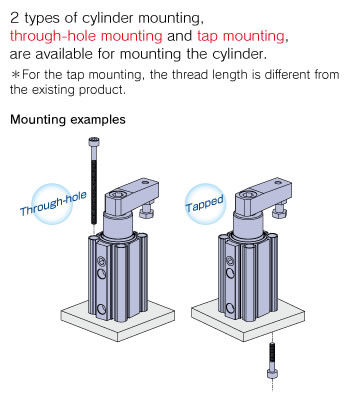

Flange mounting
Direct mounting

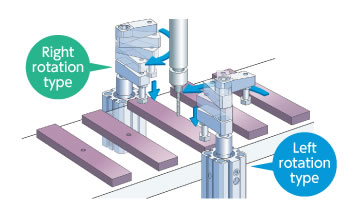

Clamping rotary direction can be selected to suit the setting conditions.
