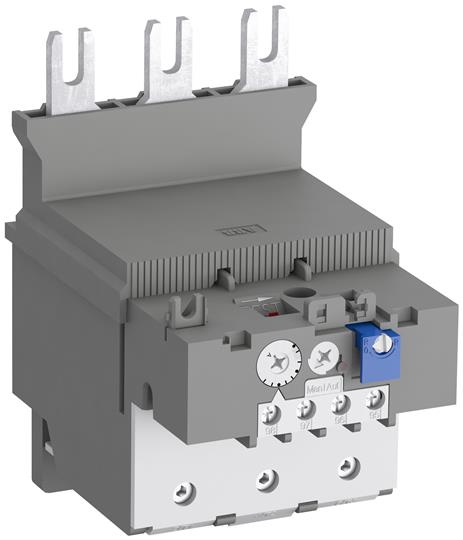

ABB TF140DU-135-V-1000热过载继电器1SAZ431301R1003：
| 产品型号: | TF140DU-135-V-1000 |
| 产品ID: | 1SAZ431301R1003 |
| EAN: | 4013614499531 |
| 目录说明: | TF140DU-135-V-1000 Thermal Overload Relay |
| 详细描述: | TF140DU-135-V-1000 Thermal Overload Relay with ATEX |
| 最小起订量: | 1 piece |
| 海关关税号: | 85364900 |
| 产品净宽: | 89 mm |
| 产品净高: | 140 mm |
| 产品净深: | 126 mm |
| 产品净重: | 0.82 kg |
| 说明书和手册: |
2CDC106050M6802 |
| 说明书和手册（第2部分）: |
2CDC106082M6801 |
| 尺寸图: |
1SAZ400404F0001 |
| 设置范围: | 100 ... 135 A |
| 额定工作电压: | Auxiliary Circuit 440 V DC Auxiliary Circuit 500 V AC Main Circuit 690 V AC |
| 额定工作电流 (Ie): | 135 A |
| 额定工作电流 AC-3 (Ie): | 135 A |
| 额定频率 (f): | Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 60 Hz Main Circuit 50 Hz Main Circuit DC |
| 额定冲击耐受电压 (Uimp): | Auxiliary Circuit 6 kV Main Circuit 8 kV |
| 额定绝缘电压 (Ui): | 690 V |
| 极数: | 3 |
| 辅助触点NC数量: | 1 |
| 辅助触点NO数量: | 1 |
| 保护极数: | 3 |
| 额定发热电流（自由空气） (Ith): | Auxiliary Circuit NC 10 A Auxiliary Circuit NO 6 A |
| 额定工作电流 AC-15 (Ie): | (120 V) NC 3 A (120 V) NO 1.5 A (240 V) NC 3 A (240 V) NO 1.5 A (400 V) NC 1.9 A (400 V) NO 1 A (440 V) NC 1 A (440 V) NO 1 A (500 V) NC 1 A (500 V) NO 1 A |
| 额定工作电流 DC-13 (Ie): | (125 V) NC 0.25 A (125 V) NO 0.25 A (24 V) NC 1.25 A (24 V) NO 1.25 A (250 V) NC 0.12 A (250 V) NO 0.04 A (60 V) NC 0.25 A (60 V) NO 0.25 A |
| 防护等级: | Housing IP20 Main Circuit Terminals IP10 |
| 污染等级: | 3 |
| 辅助电路连接容量: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible 1/2x 0.75 ... 2.5 mm² Rigid 1/2x 0.75 ... 4 mm² |
| 主电路连接容量: | Flexible with Ferrule 1/2x 16 ... 70 mm² Flexible with Insulated Ferrule 1/2x 16 ... 70 mm² Flexible 1/2x 16 ... 70 mm² Rigid 1/2x 16 ... 70 mm² |
| 拧紧力矩: | Auxiliary Circuit 0.8 ... 1.2 N·m Main Circuit 8 ... 10 N·m |
| 剥线长度: | Auxiliary Circuit 9 mm Main Circuit 25 mm |
| 推荐的螺丝刀: | Auxiliary Circuit Pozidriv 2 Main Circuit Hexagon 4 |
| 适用于: | AF116 AF140 |
| 标准: | IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 |
| 周围环境温度: | Operation -25 ... +55 °C Operation Compensated -25 ... +55 °C Storage -40 ... +70 °C |
| 周围环境温度补偿: | Yes |
| 允许的最高工作海拔: | 2000 m |
| 抗机械冲击符合IEC 60068-2-27标准: | 11 ms Pulse 12g |
| RoHS状态: | Following EU Directive 2011/65/EU |
| 最高工作电压UL/CSA: | Main Circuit 600 V AC |
| 额定电流UL/CSA: | 135 A |
| 接触等级UL/CSA: | (NC:) B600 (NO:) C300 |
| 主电路连接容量 UL/CSA: | Flexible 1/2x 6-2/0 AWG Stranded 1/2x 6-2/0 AWG |
| 辅助电路连接容量 UL/CSA: | Flexible 1/2x 18-14 AWG Stranded 1/2x 18-14 AWG |
| 拧紧力矩UL/CSA: | Auxiliary Circuit 12 in·lb |
| ABS认证: |
1SAA941004-0101 |
| ATEX认证: |
1SAA941003-3901 |
| BG认证: |
1SAA941012-2001 |
| BV认证: |
1SAA941003-0201 |
| CCC认证: |
1SAA941009-3802 |
| cUL 认证: |
cUL_E48139 |
| 符合性声明 - CE: |
1SAD938503-0192 |
| DNV GL Certificate: |
1SAA941004-0301 |
| EAC认证: |
1SAA941002-2702 |
| 说明书和手册: |
2CDC106050M6802 |
| LR认证: |
1SAA941004-0501 |
| RINA认证: |
RINA_ELE098115XG |
| RMRS认证: |
1SAA941002-0701 |
| RoHS信息: |
1SAD938503-0192 |
| UL认证: |
UL_E48139 |
| 1级包装单元: | 1 piece |
| 1级包装宽度: | 165 mm |
| 1级包装高度: | 133 mm |
| 1级包装长度: | 151 mm |
| 1级包装 总重: | 0.945 kg |
| 1级包装 EAN: | 4013614499531 |
| 2级包装单元: | 4 piece |
| 2级包装宽度: | 280 mm |
| 2级包装高度: | 210 mm |
| 2级包装长度: | 395 mm |
| 2级包装 总重: | 8.786 kg |
| 2级包装 EAN: | 4013614503733 |
| ETIM 5: | EC000106 - Thermal overload relay |
| ETIM 6: | EC000106 - Thermal overload relay |
| ETIM 7: | EC000106 - Thermal overload relay |
| e级: | 7.0 27371501 |
| UNSPSC: | 39121521 |
