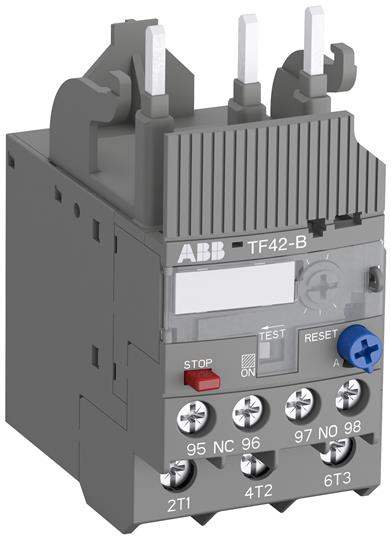

ABB TF42-20B热过载继电器1SAZ741201R1049：
| 产品型号: | TF42-20B |
| 产品ID: | 1SAZ741201R1049 |
| EAN: | 4013614517198 |
| 目录说明: | TF42-20B Thermal Overload Relay |
| 详细描述: | The TF42-B thermal overload relays are economic electromechanical protection devices for the main circuit, complying with the latest railway rolling stock standards and allowing installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds. They offer a reliable protection for motors in the event of overload or phase failure. The devices have trip class 10. The thermal overload relays are three pole relays with bimetal tripping elements. The motor current flows through the bimetal tripping elements and heats them directly and indirectly. In case of an overload (over current), the bimetal elements bent as a result of the heating. This leads to a release of the relay and a change of the contacts switching position (95-96 / 97-98). – Manual or automatic reset selectable – Phase loss sensitive acc. to IEC/EN 60947-4-1 – TEST and STOP function – Trip indication on the front – Temperature compensation – Suitable for three- and single-phase applications – designed in accordance to the applicable parts of IEC 60077 standard – shocks and vibration withstand conforming to IEC 61373 (category 1, class B) – usable according to European fire and smoke safety standard EN 45545-2 |
| 最小起订量: | 1 piece |
| 海关关税号: | 85364900 |
| 产品净宽: | 45 mm |
| 产品净高: | 88.3 mm |
| 产品净深: | 70.5 mm |
| 产品净重: | 0.135 kg |
| 说明书和手册: |
2CDC106022M6802 |
| 设置范围: | 16 ... 20 A |
| 额定工作电压: | Auxiliary Circuit 600 V AC/DC Main Circuit 690 V AC |
| 额定工作电流 (Ie): | 20 A |
| 额定工作电流 AC-3 (Ie): | 20 A |
| 额定频率 (f): | Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 50 Hz Main Circuit 60 Hz |
| 额定冲击耐受电压 (Uimp): | Auxiliary Circuit 6 kV Main Circuit 6 kV |
| 额定绝缘电压 (Ui): | 690 V |
| 极数: | 3 |
| 辅助触点NC数量: | 1 |
| 辅助触点NO数量: | 1 |
| 保护极数: | 3 |
| 额定发热电流（自由空气） (Ith): | Auxiliary Circuit NC 6 A Auxiliary Circuit NO 4 A Main Circuit 0 A |
| 额定工作电流 AC-15 (Ie): | (120 V) NC 3 A (120 V) NO 0.75 A (240 V) NC 3 A (240 V) NO 0.75 A (400 V) NC 0.75 A (400 V) NO 0.75 A (500 V) NC 0.75 A (500 V) NO 0.75 A |
| 额定工作电流 DC-13 (Ie): | (125 V) NC 0.55 A (125 V) NO 0.55 A (24 V) NC 1.25 A (24 V) NO 1.25 A (250 V) NC 0.27 A (250 V) NO 0.27 A (500 V) NC 0.15 A (500 V) NO 0.15 A (60 V) NC 0.55 A (60 V) NO 0.55 A |
| 防护等级: | IP20 |
| 污染等级: | 3 |
| 辅助电路连接容量: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² Flexible 1/2x 0.75 ... 1 mm² Flexible 1/2x 1 ... 2.5 mm² Rigid 1/2x 0.75 ... 4 mm² |
| 主电路连接容量: | Flexible with Ferrule 1/2x 0.75 ... 4 mm² Flexible with Insulated Ferrule 1/2x 0.75 ... 4 mm² Flexible 1/2x 0.75 ... 4 mm² Rigid 1/2x 0.75 ... 4 mm² |
| 拧紧力矩: | Auxiliary Circuit 1 ... 1.2 N·m Main Circuit 2.5 ... 2.7 N·m |
| 剥线长度: | Auxiliary Circuit 9 mm Main Circuit 12 mm |
| 推荐的螺丝刀: | Main Circuit Pozidriv 2 |
| 功率损耗: | at Rated Operating Conditions per Pole 1.8 ... 2.6 W |
| 适用于: | AF09ZB AF09B AF12ZB AF12B AF16ZB AF16B AF26ZB AF26B AF30ZB AF30B AF38ZB AF38B |
| 标准: | IEC/EN 60947-4-1 IEC/EN 60947-5-1 IEC/EN 60947-1 UL 508 CSA 22.2 No. 14 IEC 60077-1 (applicable parts) IEC 60077-2 (applicable parts) |
| 周围环境温度: | Operation -25 ... +60 °C Operation Compensated -25 ... +60 °C Storage -50 ... +80 °C |
| 周围环境温度补偿: | Yes |
| 允许的最高工作海拔: | 2000 m |
| 抗机械冲击符合IEC 60068-2-27标准: | 11 ms Pulse 25g |
| 耐振动符合IEC 60068-2-6标准: | 5g / 3 ... 150 Hz |
| RoHS状态: | Following EU Directive 2011/65/EU |
| 最高工作电压UL/CSA: | Main Circuit 600 V AC |
| 额定电流UL/CSA: | 20 A |
| 接触等级UL/CSA: | (NC:) B600 (NC:) Q600 (NO:) Q600 (NO:) D300 |
| 主电路连接容量 UL/CSA: | Flexible 1/2x 18-10 AWG Stranded 1/2x 18-10 AWG |
| 辅助电路连接容量 UL/CSA: | Flexible 1/2x 18-12 AWG Stranded 1/2x 18-12 AWG |
| 拧紧力矩UL/CSA: | Auxiliary Circuit 9 ... 11 in·lb Main Circuit 13 ... 22 in·lb |
| CCC认证: |
1SAA941006-3804 |
| 符合性声明 - CE: |
1SAD938501-0199 |
| 说明书和手册: |
2CDC106022M6802 |
| RoHS信息: |
1SAD938501-0199 |
| 1级包装单元: | 1 piece |
| 1级包装宽度: | 48 mm |
| 1级包装高度: | 92 mm |
| 1级包装长度: | 78 mm |
| 1级包装 总重: | 0.15 kg |
| 1级包装 EAN: | 4013614517198 |
| 2级包装单元: | 48 piece |
| 2级包装宽度: | 280 mm |
| 2级包装高度: | 210 mm |
| 2级包装长度: | 395 mm |
| 2级包装 总重: | 7.586 kg |
| 2级包装 EAN: | 4013614517419 |
| 对象分类代码: | F |
| ETIM 5: | EC000106 - Thermal overload relay |
| ETIM 6: | EC000106 - Thermal overload relay |
| ETIM 7: | EC000106 - Thermal overload relay |
| e级: | 7.0 27371501 |
| UNSPSC: | 39121521 |
