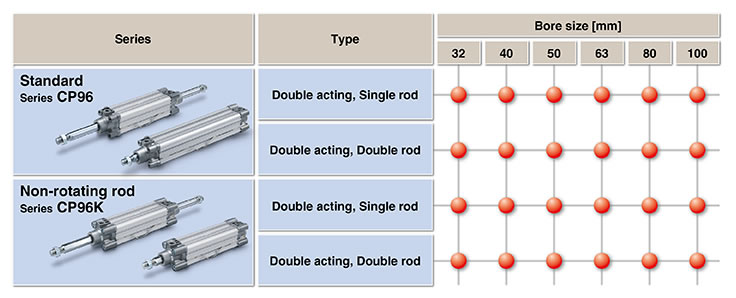

SMC气缸CP96/CP96SD符合ISO规格的气缸：
| 形式 | 系列 | 动作方式 | 缸筒内径（mm） |
|---|---|---|---|
| 标准型 | CP96 |
单杆双作用 双杆双作用 |
32，40，50，63，80，100，125 |
| 杆不回转型 | CP96K |
单杆双作用 双杆双作用 |
32，40，50，63，80，100 |

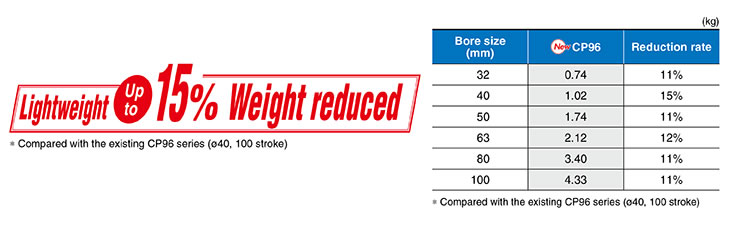

Achieved weight reduction by changing rod cover shape and piston structure

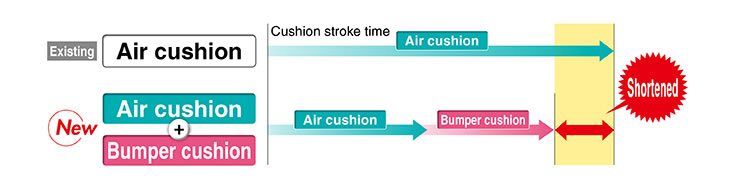

By adopting a new cushion method (Air cushion + Bumper cushion), Cycle time shortened

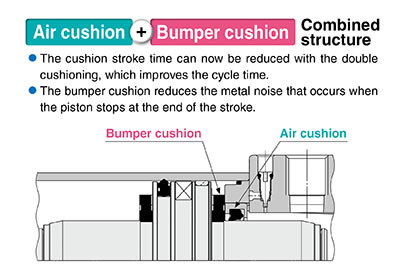

Air cushion + Bumper cushion Combined structure
● Standard type, Double rod: Series CP96-W
● Non-rotating rod type,
Single rod: Series CP96K
Double rod: Series CP96K-W
● Heat resistant cylinder (-XB6)
● Heavy duty scraper (-XC4)
● Coil scraper (-XC35) etc. are added.

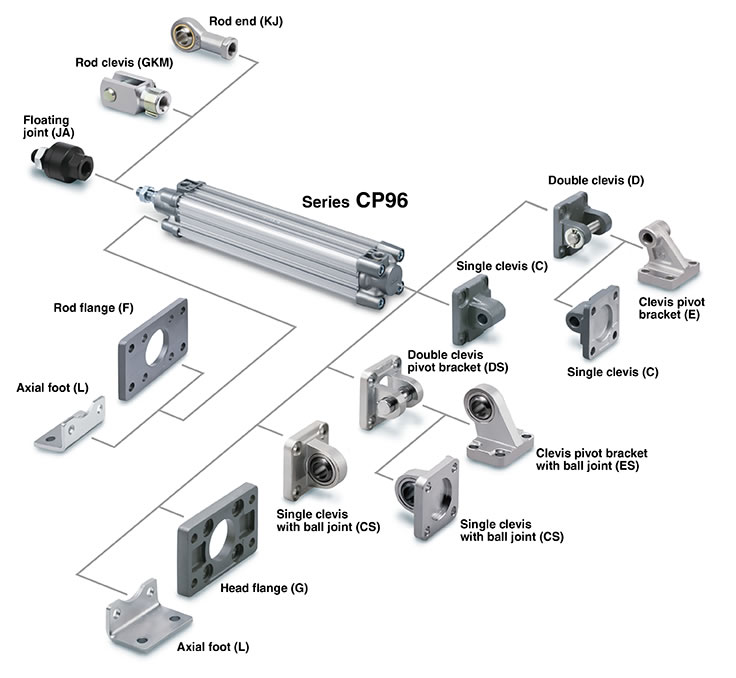

Mounting brackets can be combined according to the operating conditions.
