SMC气缸MXH紧凑型气动滑台：
| 型号 | 系列 | 动作方式 | 缸筒内径（mm） |
|---|---|---|---|
| 标准型 | MXH | 双作用 | 6，10，16，20 |

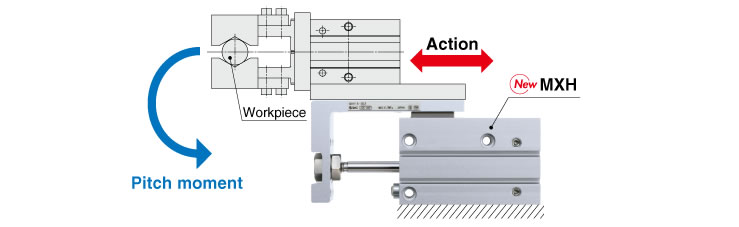

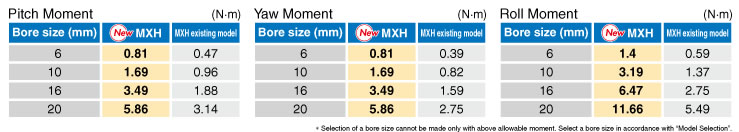

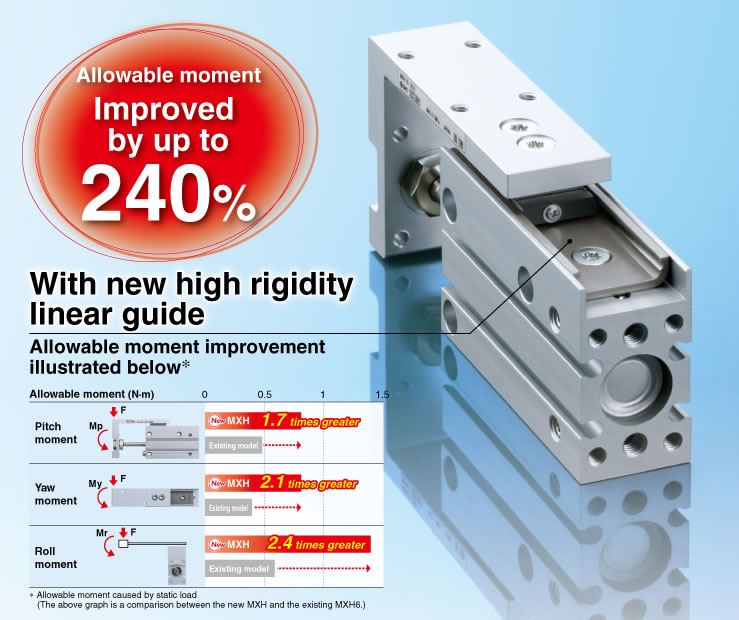

High allowable moment

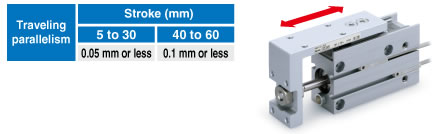

Traveling parallelism is the same as the existing model.
Deflection at the extended position of the table is the same as the existing model.
Small auto switches capable
(D-M9□, D-A9□)

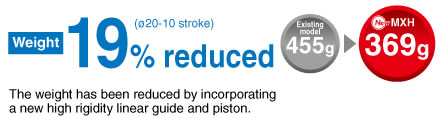

Weight 19% reduced (ø20-10 stroke)
Dimensions including workpiece mounting dimensions and cylinder mounting dimensions are the same as the existing model.
Useful when long stroke/travel is required
